Corneal Cross-Linking (CXL): Leaving the Epithelium On

Leaving the corneal epithelium intact during CXL (‘epi-on’ CXL) had long been desired, pushing researchers to quickly develop two main approaches to getting riboflavin through the epithelial cell tight junctions and into the stroma: iontophoresis^1,2 (where an electrical current is applied to electrostatically force riboflavin molecules through the epithelium) and the use of penetration enhancers such as ethylenediaminetetraacetic acid (EDTA) or trometamol that degrade the tight junctions and allow riboflavin to pass between the epithelial cells.³

Once again, these approaches resulted in lower cross-linking efficacy than Dresden protocol CXL (sometimes to quite an extent)⁴ and left efficacy on the table. The reason was simple: not only does an intact epithelium act as a barrier to oxygen diffusion into the stroma—it also absorbs up to a fifth of the UV fluence administered.⁵ Again, approaches like supplemental oxygen were used to try to optimize that aspect of the CXL procedure, and again, the delivery of higher UV fluences helped to close the efficacy gap.⁶

Customized and combination CXL: personalizing treatment

Laser refractive surgery involves the removal of stromal tissue, which weakens the cornea’s biomechanical strength. Most corneas have more than enough strength in reserve for this surgery to be performed safely, but in thin corneas or ones with forme fruste ectasias, the procedure’s safety can be compromised. This is why comprehensive screening is necessary before undertaking any refractive laser procedure.

CXL strengthens the cornea and may allow the laser procedure to be performed with a higher degree of confidence a corneal ectasia will not develop later (these are called ‘Xtra’ procedures).⁷ However, recent long-term follow-up studies suggest no additional benefit in visual or safety outcomes achieved by prophylactically cross-linking corneas undergoing laser refractive surgery.^8,9

Therapeutic laser surgery is also possible in ectatic corneas, where the aim is not perfect refractive correction (which would be unachievable) but to regularize the cross-linked and therefore strengthened cornea to reduce certain higher-order aberrations and improve visual quality, often in combination with special contact lenses. The first examples of these procedures were the combinations of CXL and topography-guided PRK (Athens^10,11 and Cretan protocols¹²), and these approaches appear to bring sustained visual acuity and astigmatism reduction benefits.^11,13–15 Further attempts to optimize (such as Miguel Reichichi’s STARE-X¹⁶ and Rohit Shetty’s TREK¹⁷) aim to achieve these benefits while minimizing the amount of stromal tissue ablated by the excimer laser.

Customized CXL

CXL alone typically causes, on average, around 1 dioptre (D) of corneal flattening; the issue is the amount of flattening is highly variable and unpredictable.¹⁸ But in ectatic corneas, any flattening of the cone is of value as it partially rehabilitates the shape of the cornea and, with it, patients’ vision.

Topography-guided CXL, which attempts to selectively flatten the thinnest or steepest areas of the ectatic cornea, was developed. This approach uses specialized equipment to deliver higher UV fluences to these regions, along with an eye tracker to accurately target the UV energy.¹⁹ This resulted in corneal flattening responses of approximately 2–4 D,^20–22 even when supplemental oxygen was used.²³

A second-generation customized CXL technique, PTK-assisted customized epi-on CXL (PACE), has since been developed.²⁴ PACE involves three steps. First, an epithelial map-driven phototherapeutic keratectomy (PTK) is performed to remove a limited region of the epithelium over the cone while sparing stromal tissue. This makes PACE a partial epi-on/epi-off procedure, which means when riboflavin is applied in the next step, it generates a concentration gradient that peaks over the cone. Finally, the cone region receives a higher total fluence than the rest of the cornea.

Preliminary results demonstrate a more pronounced flattening effect compared to first-generation customized CXL, with observed reductions in corneal asymmetry of up to 12 D within the first month following the procedure.²⁴ This larger flattening enables a greater amount of visual rehabilitation.

Both first- and second-generation customized CXL approaches offer the advantage that, after corneal stabilization, PTK, PRK, intracorneal ring segment surgery, or a combination thereof, can further enhance corneal symmetry and reduce aberrations.

PACK-CXL and beyond: expanding indications

CXL’s potential extends beyond corneal ectasias. As mentioned above, CXL kills keratocytes in the stroma; it also kills pathogens. The ROS generated by the UV-riboflavin reaction directly attacks and damages pathogen cell membranes (leading to lysis) and intercalates with pathogen nucleic acids, inhibiting replication.^25,26 This is the same method blood banks use to sterilize blood products.

Not only does this property of CXL support its use in an office-based setting (such as at the slit lamp),²⁷ it is also a valuable tool in treating infectious keratitis and a method that sidesteps the issues of pathogen antimicrobial drug prophylaxis. A phase III trial has shown a single treatment with this ‘photoactivated chromophore for keratitis-CXL’ (PACK-CXL) procedure can be as effective as standard-of-care antimicrobial drug therapy for treating infectious keratitis of bacterial, fungal, or mixed bacterial/fungal origin.²⁸

Unlike with CXL for ectasia, it also appears increasing the UV intensity does not significantly compromise its efficacy; like CXL for ectasia, higher UV fluences increase efficacy.^29,30 The main reason is corneas with infectious keratitis are typically opaque, and UV transmission reduces significantly with ulcer depth.³¹ This also means higher fluences can be used safely concerning the corneal endothelium under these circumstances.

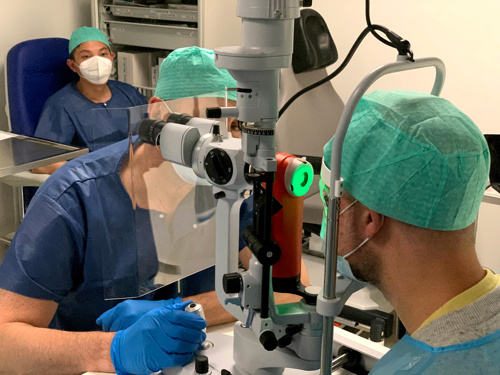

It is worth noting that other chromophore/light combinations are under investigation for PACK-CXL, principally rose Bengal and 532 nm green light (as seen in the image with this article). These have also shown good pathogen-killing efficacy and can be combined with riboflavin/UV CXL.³²

Conclusion: the future of CXL

CXL has gone from a single-indication ectasia treatment (keratoconus) to one used to treat several conditions, including iatrogenic post-refractive laser surgery ectasia, Terrien³³ and pellucid marginal degenerations,³⁴ and even keratoglobus.³⁵ Customized CXL protocols like PACE mean CXL can now be used not only to arrest ectasia progression but also to rehabilitate the shape of the cornea and improve patients’ vision.

PACK-CXL is a valuable addition to cornea specialists’ arsenal for treating infectious keratitis. As PACK-CXL can often succeed after a single treatment, it can hold particular value in low- to middle-income countries (LMICs), where physician and treatment costs are high and patients often lack the resources for a first (let alone a second) medical appointment. Indeed, the pathogen-killing nature of CXL, which enables it to be performed as safely in a doctor’s office as an operating room, is a cost-saving feature that can be particularly beneficial to LMICs.²⁷

The future of CXL probably encompasses further optimization of existing techniques, either when used alone or in combination with other procedures. One exciting prospect may be two-photon CXL, in which a femtosecond laser can be used to selectively cross-link parts of the cornea at specific points in three-dimensional space.^36–38 What value this might have—perhaps refractive, as a treatment for myopia and astigmatism in general, or rehabilitating irregular corneas—remains to be seen. But CXL still appears to have a great deal of potential yet to be revealed.

Part one of this series appeared in the November 2024 issue; part two appeared in the December issue.

Farhad Hafezi MD, PhD, FARVO is the medical director of the ELZA Institute in Zurich, Switzerland, and is an ESCRS board member.

Mark Hillen PhD is the communications director of the ELZA Institute.

Emilio Torres-Netto MD, PhD, FWCRS is a cornea, cataract, and refractive surgeon at the ELZA Institute.
